GCC Compilation Stage
GCC is a collection of compilers.
The C compiler itself turns C code into an assembly code listing, and this is sent to the assembler to be converted into an object file and later linked into a target binary.
If you only want some of the stages of compilation, you can use -x (or filename suffixes) to tell gcc where to start, and one of the options -c, -S, or -E to say where gcc is to stop.
GNU Compiler Collection#
GCC, the GNU Compiler Collection @git - wiki
GCC online documentation - gcc - gccint
The GCC(GNU Compiler Collection) includes front ends for C, C++, Objective-C, Fortran, Ada, Go, and D, as well as libraries for these languages (libstdc++,...).
When we invoke gcc -v to comile a program, it will print (on standard error output) the commands executed to run the stages of compilation.
$ gcc -v helloworld.c
Using built-in specs.
COLLECT_GCC=gcc
COLLECT_LTO_WRAPPER=/usr/lib/gcc/aarch64-linux-gnu/11/lto-wrapper
What does the first two lines mean?
Mainstream Compiler - GNU C Compiler Internals/Architecture
For a C source file they are the preprocessor and compiler cc1, the assembler as, and the linker collect2. The first and the third programs come with a GCC distribution, the assembler is a part of the GNU binutils package.
Developer Options: -dumpspecs : Print the compiler's built-in Spec Files:
- cpp : Options to pass to the C preprocessor
- cc1 : Options to pass to the C compiler
- cc1plus : Options to pass to the C++ compiler
- Invocation: the preprocessor is actually integrated with the compiler rather than a separate program.
- Preprocessor Options:
-no-integrated-cpp: Perform preprocessing as a separate pass before compilation.
FAQ - GCC Wiki: the GCC C compiler (cc1) and C++ compiler (cc1cplus)
Why cc1 is called cc1? Relationship between cc1 and gcc?
The 1 in
cc1indicates that it is the first stage of the build process. The second stage iscollect2.
Collect2 (GCC Internals): The program collect2 is installed as ld in the directory where the passes of the compiler are installed.
The C Compilation Process#
Computer Systems - A Programmer's Perspective | Chapter 1: A Tour of Computer Systems - 1.2 Programs Are Translated by Other Programs into Different Forms
The hello program begins life as a high-level C program because it can be read and understood by human beings in that form. However, in order to run hello.c on the system, the individual C statements must be translated by other programs into a sequence of low-level machine-language instructions. These instructions are then packaged in a form called an executable object program and stored as a binary disk file. Object programs are also referred to as executable object files.

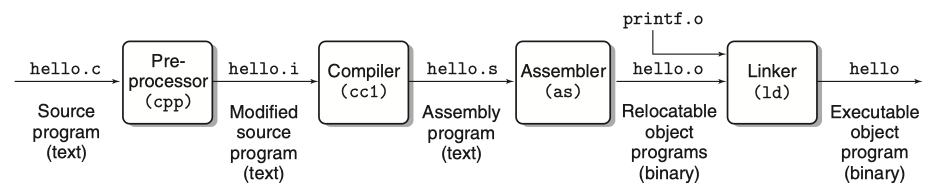

On a Unix system, the translation from source file to object file is performed by a compiler driver such as gcc:
Here, the gcc compiler driver reads the source file hello.c and translates it into an executable object file hello. The translation is performed in the sequence of four phases shown in the figure above. The programs that perform the four phases (preprocessor, compiler, assembler, and linker) are known collectively as the compilation system.
Practical Binary Analysis | Chapter 1: Anatomy of a Binary

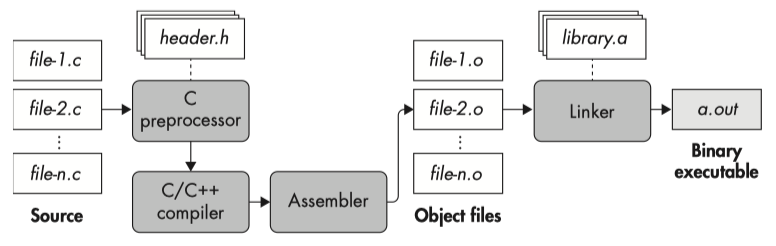

Binaries are produced through compilation, which is the process of translating human-readable source code, such as C or C ++ , into machine code that your processor can execute. The following figure shows the steps involved in a typical compilation process for C code (the steps for C ++ compilation are similar).
Compiling C code involves four phases, one of which (awkwardly enough) is also called compilation, just like the full compilation process. The phases are preprocessing, compilation, assembly, and linking. In practice, modern compilers often merge some or all of these phases, but for demonstration purposes, I will cover them all separately.
gcc stop at specified stage#
GCC online documentation - gcc
Previous related post: Mainstream Compiler - gcc/clang/msvc.

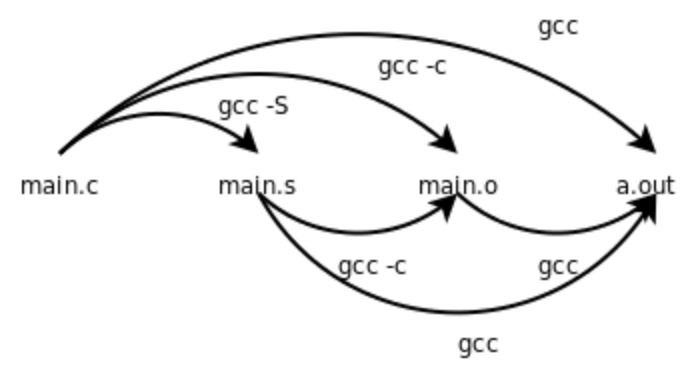

You can tell gcc to stop at a certain stage by passing options.
-E: Stop after the preprocessing stage; do not run the compiler proper. The output is in the form of preprocessed source code, which is sent to the standard output.
- related post: Dump Compiler Options
Preprocessor-Options: Options Controlling the Preprocessor
-dletters: Says to make debugging dumps during compilation as specified by letters(M|D|N|I|U). The flags documented here are those relevant to the preprocessor. Other letters are interpreted by the compiler proper, or reserved for future versions of GCC, and so are silently ignored. If you specify letters whose behavior conflicts, the result is undefined. See GCC Developer Options, for more information.
-P: Inhibit generation of linemarkers in the output from the preprocessor. This might be useful when running the preprocessor on something that is not C code, and will be sent to a program which might be confused by the linemarkers.
-S: Stop after the stage of compilation proper; do not assemble. The output is in the form of an assembler code file for each non-assembler input file specified.
- By default, the assembler file name for a source file is made by replacing the suffix ‘.c’, ‘.i’, etc., with ‘
.s’.
-fverbose-asm
Options for Code Generation Conventions
-fverbose-asm: Put extra commentary information in the generated assembly code to make it more readable. This option is generally only of use to those who actually need to read the generated assembly code (perhaps while debugging the compiler itself).
-fno-verbose-asm, the default, causes the extra information to be omitted and is useful when comparing two assembler files.
The added comments include:
- information on the compiler version and command-line options,
- the source code lines associated with the assembly instructions, in the form
FILENAME:LINENUMBER:CONTENT OF LINE, - hints on which high-level expressions correspond to the various assembly instruction operands.
-c: Compile or assemble the source files, but do not link. The linking stage simply is not done. The ultimate output is in the form of an object file for each source file.
- By default, the object file name for a source file is made by replacing the suffix ‘.c’, ‘.i’, ‘.s’, etc., with ‘
.o’.
Linux C编程一站式学习 | 第18章 汇编与C之间的关系 - 18.2 main函数、启动例程和退出状态
gcc -S stop assembling#
After the preprocessing phase is complete, the source is ready to be compiled. The compilation phase takes the preprocessed code and translates it into assembly language.
Why does the compilation phase produce assembly language and not machine code? This design decision doesn't seem to make sense in the context of just one language (in this case, C), but it does when you think about all the other languages out there.
We can intercept this assembly listing to view what the compiler itself is generating using the command-line option –S, e.g., invoking gcc main.c -S. GCC will then compile our program in main.c into an assembly listing and write it to the file main.s.
Most compilers also perform heavy optimization in this phase, typically configurable as an optimization level through command line switches such as options -O0 through -O3 in gcc. As you’ll see later, the degree of optimization during compilation can have a profound effect on disassembly.
# cc test-gdb.c -S [-o test-gdb.s]
$ cc test-gdb.c -S -o -
.arch armv8-a
.file "test-gdb.c"
.text
.align 2
.global func
.type func, %function
func:
.LFB0:
.cfi_startproc
sub sp, sp, #32
.cfi_def_cfa_offset 32
str w0, [sp, 12]
str wzr, [sp, 24]
str wzr, [sp, 28]
b .L2
.L3:
ldr w1, [sp, 24]
ldr w0, [sp, 28]
add w0, w1, w0
str w0, [sp, 24]
ldr w0, [sp, 28]
add w0, w0, 1
str w0, [sp, 28]
.L2:
ldr w1, [sp, 28]
ldr w0, [sp, 12]
cmp w1, w0
blt .L3
ldr w0, [sp, 24]
add sp, sp, 32
.cfi_def_cfa_offset 0
ret
.cfi_endproc
.LFE0:
.size func, .-func
.section .rodata
.align 3
.LC0:
.string "result[1-100] = %ld\n"
.align 3
.LC1:
.string "result[1-250] = %d\n"
.text
.align 2
.global main
.type main, %function
main:
.LFB1:
.cfi_startproc
stp x29, x30, [sp, -48]!
.cfi_def_cfa_offset 48
.cfi_offset 29, -48
.cfi_offset 30, -40
mov x29, sp
str w0, [sp, 28]
str x1, [sp, 16]
str xzr, [sp, 40]
mov w0, 1
str w0, [sp, 36]
b .L6
.L7:
ldrsw x0, [sp, 36]
ldr x1, [sp, 40]
add x0, x1, x0
str x0, [sp, 40]
ldr w0, [sp, 36]
add w0, w0, 1
str w0, [sp, 36]
.L6:
ldr w0, [sp, 36]
cmp w0, 100
ble .L7
ldr x1, [sp, 40]
adrp x0, .LC0
add x0, x0, :lo12:.LC0
bl printf
mov w0, 250
bl func
mov w1, w0
adrp x0, .LC1
add x0, x0, :lo12:.LC1
bl printf
mov w0, 0
ldp x29, x30, [sp], 48
.cfi_restore 30
.cfi_restore 29
.cfi_def_cfa_offset 0
ret
.cfi_endproc
.LFE1:
.size main, .-main
.ident "GCC: (Ubuntu 11.4.0-1ubuntu1~22.04) 11.4.0"
.section .note.GNU-stack,"",@progbits
# cc test-gdb.c -S -fverbose-asm [-o test-gdb.s]
$ cc test-gdb.c -S -fverbose-asm -o -
.arch armv8-a
.file "test-gdb.c"
// GNU C17 (Ubuntu 11.4.0-1ubuntu1~22.04) version 11.4.0 (aarch64-linux-gnu)
// compiled by GNU C version 11.4.0, GMP version 6.2.1, MPFR version 4.1.0, MPC version 1.2.1, isl version isl-0.24-GMP
// GGC heuristics: --param ggc-min-expand=91 --param ggc-min-heapsize=115878
// options passed: -mlittle-endian -mabi=lp64 -fasynchronous-unwind-tables -fstack-protector-strong -fstack-clash-protection
.text
.align 2
.global func
.type func, %function
func:
.LFB0:
.cfi_startproc
sub sp, sp, #32 //,,
.cfi_def_cfa_offset 32
str w0, [sp, 12] // n, n
// test-gdb.c:5: int sum=0,i;
str wzr, [sp, 24] //, sum
// test-gdb.c:6: for(i=0; i<n; i++)
str wzr, [sp, 28] //, i
// test-gdb.c:6: for(i=0; i<n; i++)
b .L2 //
.L3:
// test-gdb.c:8: sum+=i;
ldr w1, [sp, 24] // tmp95, sum
ldr w0, [sp, 28] // tmp96, i
add w0, w1, w0 // tmp94, tmp95, tmp96
str w0, [sp, 24] // tmp94, sum
// test-gdb.c:6: for(i=0; i<n; i++)
ldr w0, [sp, 28] // tmp98, i
add w0, w0, 1 // tmp97, tmp98,
str w0, [sp, 28] // tmp97, i
.L2:
// test-gdb.c:6: for(i=0; i<n; i++)
ldr w1, [sp, 28] // tmp99, i
ldr w0, [sp, 12] // tmp100, n
cmp w1, w0 // tmp99, tmp100
blt .L3 //,
// test-gdb.c:10: return sum;
ldr w0, [sp, 24] // _6, sum
// test-gdb.c:11: }
add sp, sp, 32 //,,
.cfi_def_cfa_offset 0
ret
.cfi_endproc
.LFE0:
.size func, .-func
.section .rodata
.align 3
.LC0:
.string "result[1-100] = %ld\n"
.align 3
.LC1:
.string "result[1-250] = %d\n"
.text
.align 2
.global main
.type main, %function
main:
.LFB1:
.cfi_startproc
stp x29, x30, [sp, -48]! //,,,
.cfi_def_cfa_offset 48
.cfi_offset 29, -48
.cfi_offset 30, -40
mov x29, sp //,
str w0, [sp, 28] // argc, argc
str x1, [sp, 16] // argv, argv
// test-gdb.c:16: long result = 0;
str xzr, [sp, 40] //, result
// test-gdb.c:17: for(i=1; i<=100; i++)
mov w0, 1 // tmp96,
str w0, [sp, 36] // tmp96, i
// test-gdb.c:17: for(i=1; i<=100; i++)
b .L6 //
.L7:
// test-gdb.c:19: result += i;
ldrsw x0, [sp, 36] // _1, i
ldr x1, [sp, 40] // tmp98, result
add x0, x1, x0 // tmp97, tmp98, _1
str x0, [sp, 40] // tmp97, result
// test-gdb.c:17: for(i=1; i<=100; i++)
ldr w0, [sp, 36] // tmp100, i
add w0, w0, 1 // tmp99, tmp100,
str w0, [sp, 36] // tmp99, i
.L6:
// test-gdb.c:17: for(i=1; i<=100; i++)
ldr w0, [sp, 36] // tmp101, i
cmp w0, 100 // tmp101,
ble .L7 //,
// test-gdb.c:22: printf("result[1-100] = %ld\n", result );
ldr x1, [sp, 40] //, result
adrp x0, .LC0 // tmp102,
add x0, x0, :lo12:.LC0 //, tmp102,
bl printf //
// test-gdb.c:23: printf("result[1-250] = %d\n", func(250) );
mov w0, 250 //,
bl func //
mov w1, w0 //, _2
adrp x0, .LC1 // tmp103,
add x0, x0, :lo12:.LC1 //, tmp103,
bl printf //
// test-gdb.c:25: return 0;
mov w0, 0 // _11,
// test-gdb.c:26: }
ldp x29, x30, [sp], 48 //,,,
.cfi_restore 30
.cfi_restore 29
.cfi_def_cfa_offset 0
ret
.cfi_endproc
.LFE1:
.size main, .-main
.ident "GCC: (Ubuntu 11.4.0-1ubuntu1~22.04) 11.4.0"
.section .note.GNU-stack,"",@progbits
gcc -c stop linking#
In the assembly phase, you finally get to generate some real machine code! The input of the assembly phase is the set of assembly language files generated in the compilation phase, and the output is a set of object files, sometimes also referred to as modules. Object files contain machine instructions that are in principle executable by the processor. You need to do some more work before you have a ready-torun binary executable file.
Typically, each source file corresponds to one assembly file, and each assembly file corresponds to one object file. To generate an object file, you can pass the -c flag to gcc. This option tells GCC to create the object file without invoking the linking process.
It can be broken down into two steps, as follows:
- compile to assembly:
cc test-gdb.c -S [-o test-gdb.s] - assemble to object:
as test-gdb.s -o test-gdb.o
Next time, let's take a look at the object file generated by gcc -c.
