ELF layout

The Executable and Linkable Format (ELF), is a common standard file format for executable files, object code, shared libraries, and core dumps.

Executable and Linkable Format - ELF - OSDev Wiki

In computing, the Executable and Linkable Format (ELF, formerly named Extensible Linking Format), is a common standard file format for executable files, object code, shared libraries, and core dumps. First published in the specification for the application binary interface (ABI) of the Unix operating system version named System V Release 4 (SVR4), and later in the Tool Interface Standard, it was quickly accepted among different vendors of Unix systems. In 1999, it was chosen as the standard binary file format for Unix and Unix-like systems on x86 processors by the 86open project.

ELF is the dominating file format for Linux. It competes with Mach-O for OS X and PE for Windows. ELF supersedes .coff, which supersedes a.out.

layout#

A handy summary can be found by man elf:

$ man elf
elf - format of Executable and Linking Format (ELF) files

Each ELF file is made up of one ELF header, followed by file data. The data can include:

  • Program header table, describing zero or more memory segments
  • Section header table, describing zero or more sections
  • Data referred to by entries in the program header table or section header table

Elf-layout

An ELF file has two views: the program header shows the segments used at run time, whereas the section header lists the set of sections.

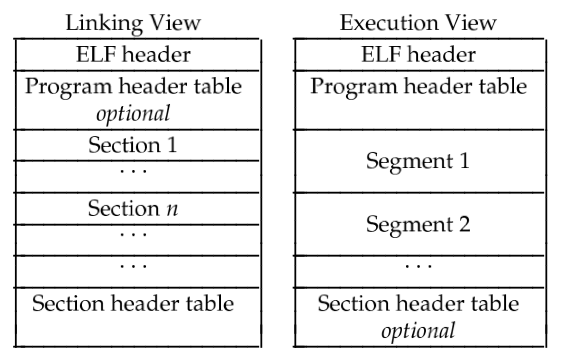

ELF-LinkingView&ExecutionView
Linking View vs. Execution View

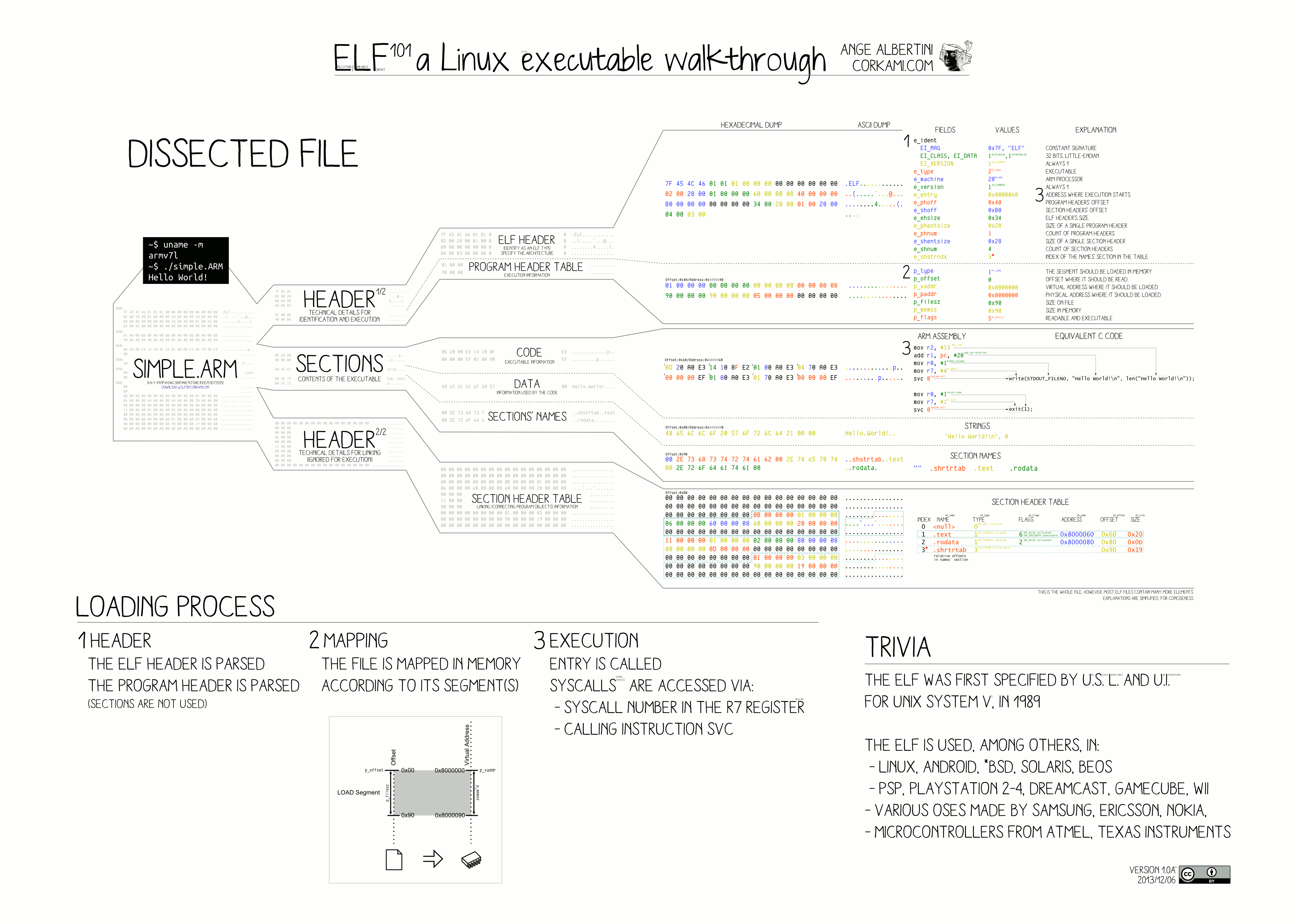

ELF_Executable_and_Linkable_Format

The segments contain information that is needed for run time execution of the file, while sections contain important data for linking and relocation. Any byte in the entire file can be owned by one section at most, and orphan bytes can occur which are unowned by any section.

  1. File header: file $ELF; objdump -f $ELF; readelf -h $ELF.
  2. Program header: readelf -lW $ELF
  3. Section header: readelf -SW $ELF; objdump -hw $ELF

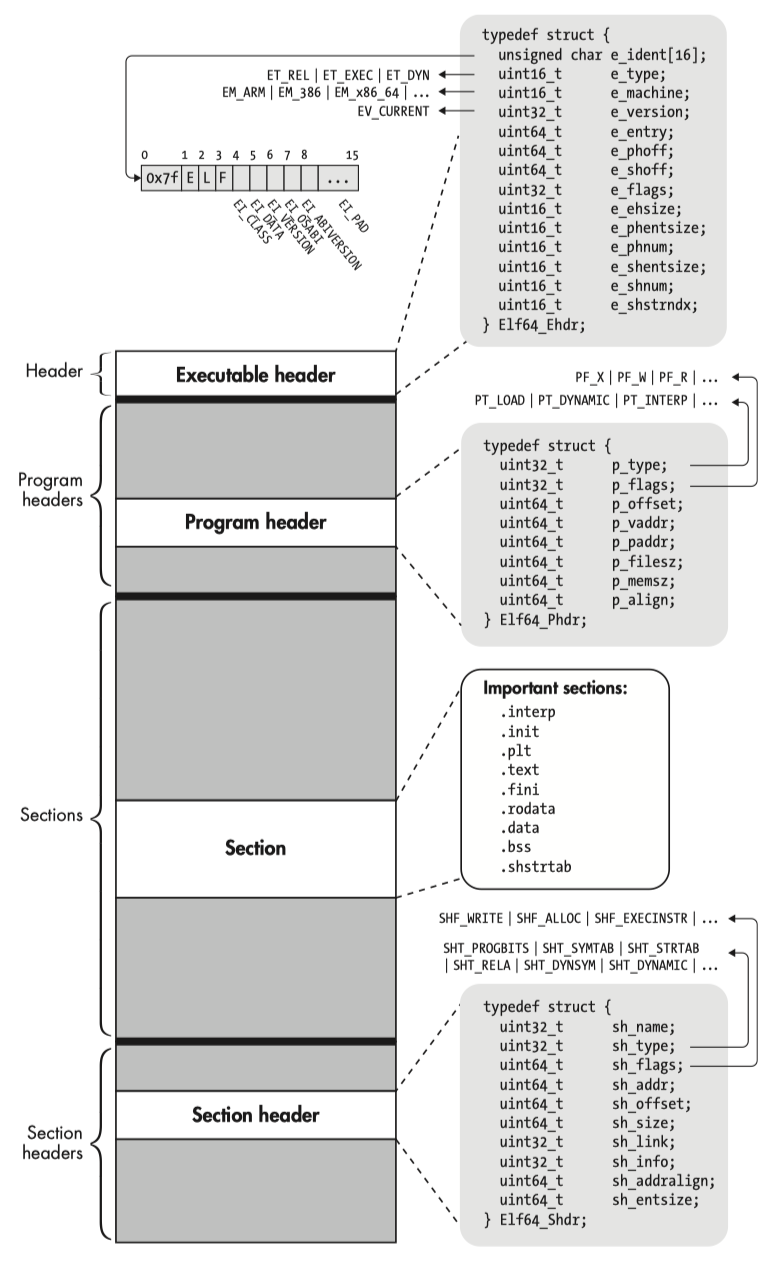

64-bit-ELF-glance
A 64-bit ELF binary at a glance

ELF header#

This header file /usr/include/elf.h(linux/include/uapi/linux/elf.h) defines standard ELF types, structures, and macros.

$ vim -M /usr/include/elf.h
/usr/include/elf.h
/* Type of addresses.  */
typedef uint32_t Elf32_Addr;
typedef uint64_t Elf64_Addr;

/* Type of file offsets.  */
typedef uint32_t Elf32_Off;
typedef uint64_t Elf64_Off;

/* The ELF file header.  This appears at the start of every ELF file. */

#define EI_NIDENT (16)

typedef struct
{
  unsigned char e_ident[EI_NIDENT]; /* Magic number and other info */
  Elf32_Half    e_type;         /* Object file type */
  Elf32_Half    e_machine;      /* Architecture */
  Elf32_Word    e_version;      /* Object file version */
  Elf32_Addr    e_entry;        /* Entry point virtual address */
  Elf32_Off     e_phoff;        /* Program header table file offset */
  Elf32_Off     e_shoff;        /* Section header table file offset */
  Elf32_Word    e_flags;        /* Processor-specific flags */
  Elf32_Half    e_ehsize;       /* ELF header size in bytes */
  Elf32_Half    e_phentsize;    /* Program header table entry size */
  Elf32_Half    e_phnum;        /* Program header table entry count */
  Elf32_Half    e_shentsize;    /* Section header table entry size */
  Elf32_Half    e_shnum;        /* Section header table entry count */
  Elf32_Half    e_shstrndx;     /* Section header string table index */
} Elf32_Ehdr;

typedef struct
{
  unsigned char e_ident[EI_NIDENT]; /* Magic number and other info */
  Elf64_Half    e_type;         /* Object file type */
  Elf64_Half    e_machine;      /* Architecture */
  Elf64_Word    e_version;      /* Object file version */
  Elf64_Addr    e_entry;        /* Entry point virtual address */
  Elf64_Off     e_phoff;        /* Program header table file offset */
  Elf64_Off     e_shoff;        /* Section header table file offset */
  Elf64_Word    e_flags;        /* Processor-specific flags */
  Elf64_Half    e_ehsize;       /* ELF header size in bytes */
  Elf64_Half    e_phentsize;    /* Program header table entry size */
  Elf64_Half    e_phnum;        /* Program header table entry count */
  Elf64_Half    e_shentsize;    /* Section header table entry size */
  Elf64_Half    e_shnum;        /* Section header table entry count */
  Elf64_Half    e_shstrndx;     /* Section header string table index */
} Elf64_Ehdr;

The initial 16 bytes correspond to the e_ident member, which means "ELF Identification".
It markes the file as an object file and provide machine-independent data with which to decode and interpret the file's contents.

hexdump: hd -n 16 $ELF

Name Value Purpose
EI_MAGO 0 File identification byte 0 index
EI_MAG1 1 File identification byte 1 index
EI_MAG2 2 File identification byte 2 index
EI_MAG3 3 File identification byte 3 index
EI_CLASS 4 File class byte index
EI_DATA 5 Data encoding byte index
EI_VERSION 6 File version byte index
EI_OSABI 7 OS ABI identification
EI_ABIVERSION 8 ABI version
EI_PAD 9 Byte index of padding bytes

A file's first 4 bytes hold a "magic number," identifying the file as an ELF object file.

Name Value Position
ELFMAGO 0x7f e_ident[EI_MAG0]
ELFMAG1 'E' e_ident[EI_MAG1]
ELFMAG2 'I' e_ident[EI_MAG2]
ELFMAG3 'F' e_ident[EI_MAG3]

The next byte, e_ident[EI_CLASS], identifies the file's class, or capacity.

Name Value Meaning
ELFCLASSNONE 0 Invalid class
ELFCLASS32 1 32-b it objects
ELFCLASS64 2 64-b it objects

Byte e_ident[EI_DATA] specifies the data encoding of the processor-specific data in the object file. The following encodings are currently defined.

Name Value Meaning
ELFDATANONE 0 Invalid data encoding
ELFDATA2LSB 1 2's complement, little endian
ELFDATA2MSB 2 2's complement, big endian

e_type identifies the object file type.

hexdump -s 16 -n 2 -e '"%07.7_ax " /2 "%04x " "\n"' $ELF

Name Value Meaning
ET_NONE 0 No file type
ET_REL 1 Relocatable file
ET_EXEC 2 Executable file
ET_DYN 3 Shared object file
ET_CORE 4 Core file

e_machine specifies the required architecture for an individual file.

hexdump -s 18 -n 2 -e '"%07.7_ax " /2 "%04x " "\n"' $ELF

Name Value Meaning
EM_NONE 0 No machine
EM_SPARC 2 SUN SPARC
EM_386 3 Intel 80386
EM_68K 4 Motorola m68k family
EM_88K 5 Motorola m88k family
EM_MIPS 8 MIPS R3000 big-endian
EM_MIPS_RS3_LE 10 MIPS R3000 little-endian
EM_ARM 40 ARM
EM_X86_64 62 AMD x86-64 architecture
EM_AARCH64 183 ARM AARCH64
EM_RISCV 243 RISC-V

To view, dump, analyse or manipulate the object file and ELF file, you need GNU binutils such as readelf, objdump, strip, objcopy, libbfd, etc.

section header#

The ELF header begins with a 16-byte sequence that describes the word size and byte ordering of the system that generated the file. The rest of the ELF header contains information that allows a linker to parse and interpret the object file. This includes the size of the ELF header, the object file type (e.g., relocatable, executable, or shared), the machine type (e.g., x86-64), the file offset of the section header table, and the size and number of entries in the section header table. The locations and sizes of the various sections are described by the section header table, which contains a fixed-size entry for each section in the object file.

The e_shoff member of ElfN_Ehdr(N ∈ {32, 64}) holds the offset to the section header table.

TIS - ELF v1.2 | Book I: ELF - 1. Object Files - Sections

An object file's section header table lets one locate all the file's sections. Refer to struct ElfN_Shdr(N ∈ {32, 64}) defined in /usr/include/elf.h.

  1. sh_type defines Section Types.
  2. sh_offset holds the address to the section's first byte.

Sections contain all information in an object file, except the ELF header, the program header table, and the section header table.

  1. For typical relocatable object files (suffixed .o), the sections are sandwiched between the ELF header and the section header table.

  2. For typical executable (no suffix) or shared object files (usually suffixed with .so), there is a program header sandwiched between the ELF header and the section header table. Therefore the sections are sandwiched between the program header and the section header table.

Moreover, object files' sections satisfy several conditions.

  • Every section in an object file has exactly one section header describing it. Section headers may exist that do not have a section.
  • Each section occupies one contiguous (possibly empty) sequence of bytes within a file.
  • Sections in a file may not overlap. No byte in a file resides in more than one section.
  • An object file may have inactive space. The various headers and the sections might not "cover" every byte in an object file. The contents of the inactive data are unspecified.

Please refer to the following materials for further details.

program header#

TIS - ELF v1.2 | Book I: ELF - 2. Program Loading and Dynamic Linking - 2.2 Program Header

An executable or shared object file's program header table is an array of structures, each describing a segment or other information the system needs to prepare the program for execution. An object file segment contains one or more sections. Program headers are meaningful only for executable and shared object files. A file specifies its own program header size with the ELF header's e_phentsize and e_phnum members.

Arm Assembly Internals and Reverse Engineering | Chapter 2 ELF File Format Internals - ELF Program Headers

The program headers table describes to the loader, in effect, how to bring the ELF binary into memory efficiently.

Program headers differ from section headers in that, although they both describe the program's layout, the program headers do so in a mapping-centric way, whereas the section headers do so in more fine-grained logical units. The program headers define a series of segments, each telling the kernel how to get the program off the ground in the first place. These segments specify how and where to load the ELF file's data into memory, whether the program needs a runtime loader to bootstrap it, what the initial layout of the primary thread's thread-localstorage should look like, and other kernel-relevant metadata such as whether the program should be given executable thread stacks.

Segment Contents#

TIS - ELF v1.2 | Book III: SYSV - 2. Program Loading and Dynamic Linking - 2.1 Program Header - Segment Contents

An object file segment comprises one or more sections, though this fact is transparent to the program header. Whether the file segment holds one or many sections also is immaterial to program loading. Nonetheless, various data must be present for program execution, dynamic linking, and so on. The diagrams below illustrate segment contents in general terms. The order and membership of sections within a segment may vary; moreover, processor-specific constraints may alter the examples below.

Text segments contain read-only instructions and data, typically including the following sections. Other sections may also reside in loadable segments; these examples are not meant to give complete and exclusive segment contents.

  • .text
  • .rodata
  • .hash
  • .dynsym
  • .dynstr
  • .plt
  • .rel.got

Data segments contain writable data and instructions, typically including the following sections.

  • .data
  • .dynamic
  • .got
  • .bss

A PT_DYNAMIC program header element points at the .dynamic section, explained in "Dynamic Section" below. The .got and .plt sections also hold information related to position-independent code and dynamic linking. Although the .plt appears in a text segment above, it may reside in a text or a data segment, depending on the processor.

As "Sections" describes, the .bss section has the type SHT_NOBITS. Although it occupies no space in the file, it contributes to the segment's memory image. Normally, these uninitialized data reside at the end of the segment, thereby making p_memsz larger than p_filesz.
