ARM Load/Store Addressing Modes
In this article, we'll comb through the Load/Store addressing modes based on offset and index in ARM(A32/A64).
There are three fundamental addressing modes in AArch64 instructions: register offset, immediate offset, and literal.
For information about addressing modes, see Load/Store addressing modes.
ARM 64-Bit Assembly Language | 3 Load/store and branch instructions - 3.3 Instruction components - 3.3.3 Addressing modes
Arm Assembly Internals and Reverse Engineering | Chapter 6 Memory Access Instructions - Addressing Modes and Offset Forms
The AArch64 architecture has a strict separation between instructions that perform computation and those that move data between the CPU and memory. Computational instructions can only modify registers, not main memory. Because of this separation between load/store operations and computational operations, it is a classic example of a load-store architecture.
All computational instructions assume that the registers already contain the data. Load instructions are used to move data from memory into the registers, and store instructions are used to move data from the registers to memory.
armasm#
Memory Access/Data Transfer Instructions.
ARM Compiler armasm Reference Guide
- 3: A32 and T32 Instructions - 3.3 Memory access instructions
- 5: A64 General Instructions
- 6: A64 Data Transfer Instructions
Arm Compiler armasm User Guide
7. Writing A32/T32 Assembly Language - 7.19 Memory accesses
17. A64 General Instructions
- Table 17-1: Summary of A64 general instructions
18. A64 Data Transfer Instructions
- Table 18-1: Summary of A64 data transfer instructions
addressing modes#
7.19 Memory accesses
Many load and store instructions support different addressing modes.
Offset addressing
The offset value is applied to an address obtained from the base register. The result is used as the address for the memory access. The base register is unchanged. The assembly language syntax for this mode is:
Pre-indexed addressing
The offset value is applied to an address obtained from the base register. The result is used as the address for the memory access, and written back into the base register. The assembly language syntax for this mode is:
Post-indexed addressing
The address obtained from the base register is used, unchanged, as the address for the memory access. The offset value is applied to the address, and written back into the base register. The assembly language syntax for this mode is:
In each case, Rn is the base register and offset can be:
- An immediate constant.
- An index register,
Rm. - A shifted index register, such as
Rm, LSL #shift.
LDR/STR#
LDR (literal): Load Register (literal).
LDR (register): Load Register (register).
LDR (immediate): Load Register (immediate).
Load Register (immediate) loads a word or doubleword from memory and writes it to a register. The address that is used for the load is calculated from a base register and an immediate offset. The Unsigned offset variant scales the immediate offset value by the size of the value accessed before adding it to the base register value.
It has encodings from 3 classes: Post-index, Pre-index and Unsigned offset.
STR (register): Store Register (register).
STR (immediate): Store Register (immediate).
Store Register (immediate) stores a word or a doubleword from a register to memory. The address that is used for the store is calculated from a base register and an immediate offset.
It has encodings from 3 classes: Post-index, Pre-index and Unsigned offset.
STP/LDP#
STP: Store Pair of Registers.
Store Pair of Registers calculates an address from a base register value and an immediate offset, and stores two 32-bit words or two 64-bit doublewords to the calculated address, from two registers.
It has encodings from 3 classes: Post-index, Pre-index and Signed offset.
LDP: Load Pair of Registers.
Load Pair of Registers calculates an address from a base register value and an immediate offset, loads two 32-bit words or two 64-bit doublewords from memory, and writes them to two registers.
It has encodings from 3 classes: Post-index, Pre-index and Signed offset.
ISA guide#
A64 Instruction Set Architecture Guide
- Loads and stores - addressing
- Loads and stores - load pair and store pair
ldr addressing#
The addresses for load and store instructions appear within the square brackets, as shown in this example:
There are several addressing modes that define how the address is formed.
Base register - The simplest form of addressing is a single register. Base register is an X register that contains the full, or absolute, virtual address of the data being accessed, as you can see in this figure:
Offset addressing modes - An offset can be applied optionally to the base address, as you can see in this figure:
In the preceding figure, X1 contains the base address and #12 is a byte offset from that address. This means that the accessed address is X1+12. The offset can be either a constant or another register. This type of addressing might be used for structs, for example. The compiler maintains a pointer to the base of struct using the offset to select different members.
Pre-index addressing modes - In the instruction syntax, pre-indexing is shown by adding an exclamation mark ! after the square brackets, as this figure shows:
Pre-indexed addressing is like offset addressing, except that the base pointer is updated as a result of the instruction. In the preceding figure, X1 would have the value X1+12 after the instruction has completed.

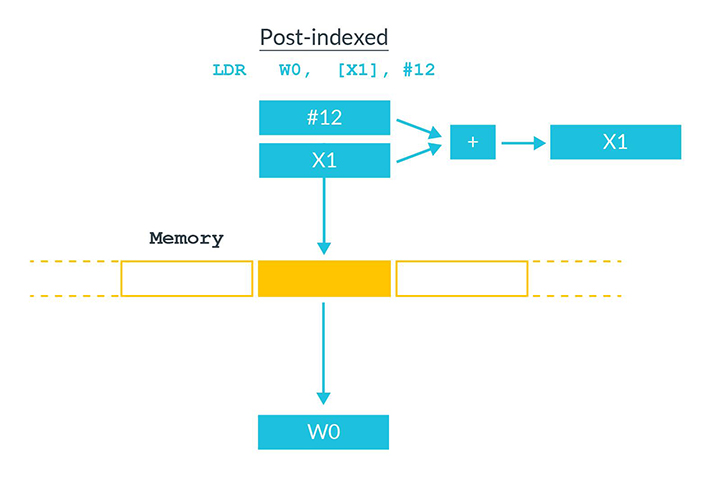

Post-index addressing modes - With post-index addressing, the value is loaded from the address in the base pointer, and then the pointer is updated, as this figure shows:
Post-index addressing is useful for popping off the stack. The instruction loads the value from the location pointed at by the stack pointer, and then moves the stack pointer on to the next full location in the stack.
load/store pair#
So far, we have discussed the load and store of a single register. A64 also has load (LDP) and store pair (STP) instructions.
These LDP and STP pair instructions transfer two registers to and from memory. Registers are processed in operand order, from left-to-right. That is, the first register operand is loaded or stored first, and the second register operand is loaded or stored next.
Consider the following examples.
The first instruction loads [X0] into W3, and loads [X0 + 4] into W7:
This second instruction stores D0 to [X4] and stores D1 to [X4 + 8]:
Load and store pair instructions are often used for pushing, and popping off the stack. This first instruction pushes X0 and X1 onto the stack:
This second instruction pops X0 and X1 from the stack:
Remember that in AArch64 the stack-pointer(X29/FP?) must be 128-bit aligned.
Index modes#
ARM Cortex-A Series Programmer's Guide for ARMv8-A | Chapter 8 Porting to A64
There are some changes to the available addressing modes for load and store instructions. The offset, pre-index and post-index forms from A32 and T32 are still available in A64. There is a new, PC-relative addressing mode, as the PC cannot be accessed in the same way as a general-purpose register.
Index modes are similar to offset modes, but they also update the base register. The syntax is the same as in A32 and T32, but the set of operations is more restrictive. Usually, only immediate offsets can be provided for index modes.
There are two variants: pre-index modes which apply the offset before accessing the memory, and post-index modes which apply the offset after accessing the memory.
Table 6-9 Index addressing modes:
| Example instruction | Description |
|---|---|
LDR X0, [X1, #8]! |
Pre-index: Update X1 first (to X1 + #8), then load from the new address |
LDR X0, [X1], #8 |
Post-index: Load from the unmodified address in X1 first, then update X1 (to X1 + #8) |
STP X0, X1, [SP, #-16]! |
Push X0 and X1 to the stack. |
LDP X0, X1, [SP], #16 |
Pop X0 and X1 off the stack. |
