ARM ADR/ADRP demos
In the previous two articles(ARM ADR (PC-relative) & ARM ADRP and ADRL pseudo-instruction), we've combed AMR ADR instructions to load a pc-relative label address to a register.
Here we collect some enlightening demos from some classic textbooks to consolidate knowledge that is not solid.
ADR vs. ADRP#
3 Load/store and branch instructions - 3.5 Branch instructions - 3.5.5 Form PC-relative address
These instructions are used to calculate the address associated with a label:
adr: Form PC-Relative Addressadrp: Form PC-Relative Address to 4 KB Page
They are more efficient than the ldr Rx,=label pseudo instruction, because they can calculate a 64-bit address in one or two instructions without performing a memory access. They can be used to load any address that is within range. If the label is out of range, then the assembler or linker will emit an error, and the programmer can change their code to use the ldr Rx,=label syntax.
Syntax
adrhas a range of ±1 MB. (21 bit immediate).-
adrphas a range of ±4 GB to the nearest 4 KB page (4096 bytes). The 21-bit immediate is shifted left by 12 bits and added to the pc.- The lower 12 bits of a label's address can be added to
adrpto exactly address a label.
- The lower 12 bits of a label's address can be added to
Operations
| Name | Effect | Description |
|---|---|---|
adr |
Rd ← Address of label | Load address with pc-relative immediate addressing. |
adrp |
Rd ← Page address of label | Load address of the beginning of the 4-Kilobyte memory page which contains the label using pc-relative immediate addressing. |

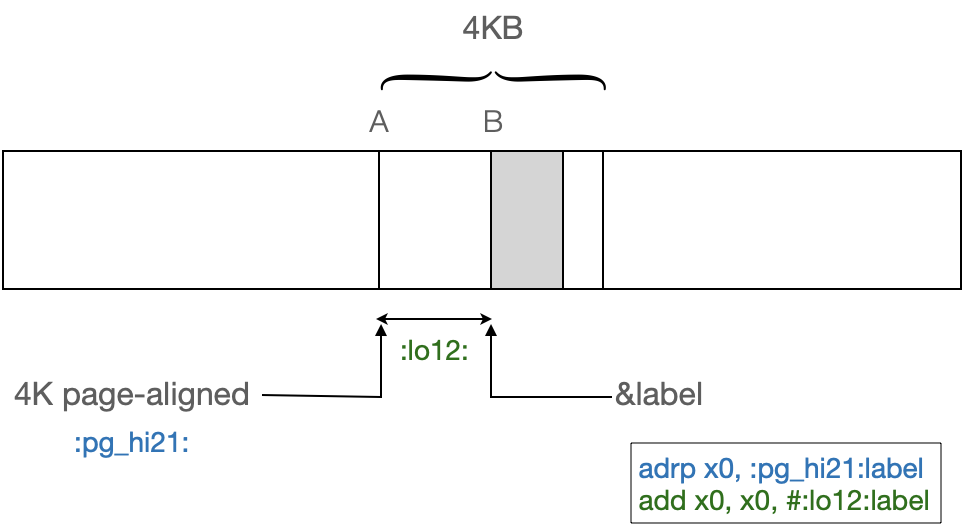

ADRL=ADRP+ADD#
In A64, ADRL assembles to two instructions, an ADRP followed by ADD.
ARM relocation generation / AArch64-Relocations
Relocations for ADRP, and ADD, LDR or STR instructions can be generated by prefixing the label with ‘:pg_hi21:’ and ‘#:lo12:’ respectively.
For example to use 33-bit (±4GB) pc-relative addressing to load the address of foo into X0:
Or to load the value of foo into X0:
Note that ‘
:pg_hi21:’ is optional.
adrp x0, foois equivalent toadrp x0, :pg_hi21:foo
In Linux kernel for arm64, the assembler has defined some handy pseudo-op macros:
/*
* @dst: destination register (32 or 64 bit wide)
* @sym: name of the symbol
* @tmp: optional 64-bit scratch register to be used if <dst> is a
* 32-bit wide register, in which case it cannot be used to hold
* the address
*/
.macro ldr_l, dst, sym, tmp=
.ifb \tmp
adrp \dst, \sym
ldr \dst, [\dst, :lo12:\sym]
.else
adrp \tmp, \sym
ldr \dst, [\tmp, :lo12:\sym]
.endif
.endm
/*
* @src: source register (32 or 64 bit wide)
* @sym: name of the symbol
* @tmp: mandatory 64-bit scratch register to calculate the address
* while <src> needs to be preserved.
*/
.macro str_l, src, sym, tmp
adrp \tmp, \sym
str \src, [\tmp, :lo12:\sym]
.endm
Examples#
Arm Assembly Internals and Reverse Engineering
Chapter 11 Dynamic Analysis - Command-Line Debugging; Debugging a Memory Corruption
Chapter 12 Reversing arm64 macOS Malware - Background - macOS Hello World (arm64)
ADRP farFarAway#
3 Load/store and branch instructions - 3.5 Branch instructions - 3.5.5 Form PC-relative address
The range of adr is just as limited as an unconditional b or a bl. To address a label that is a greater distance away, yet within 4 GB in either direction, the adrp instruction can be used.
For the ARM processor, the
.spaceand.skipdirectives are equivalent. This directive is very useful for declaring large arrays in the.bsssection.
A special notation(#:lo12:) is used to add only the lowest 12 bits of the label to the ADRP address. This fully calculates the label address because the 4 KB page is addressable with 12 bits.
adrp x0, :pg_hi21:farFarAway: 4K page-aligned boundaryadd x0, x0, #:lo12:farFarAway: offset within page
gcc -S HelloWorld#
I'll begin with our famous doorstep program -- HelloWorld.c.
It's commonplace but novice-friendly and worth using as a stepping stone.
#include <stdio.h>
int main(int argc, char *argv[])
{
printf("Hello world from C!\n");
return 0;
}
Next, invoke GCC to compile with the -S option to stop before assembling.
The -fverbose-asm option enriches the corresponding context information.
GCC -S -fverbose-asm
GCC - Overall Options
-S: Stop after the stage of compilation proper; do not assemble. The output is in the form of an assembler code file for each non-assembler input file specified.
GCC - Options for Code Generation Conventions
-fverbose-asm: Put extra commentary information in the generated assembly code to make it more readable. This option is generally only of use to those who actually need to read the generated assembly code (perhaps while debugging the compiler itself).
Emit the result direct to stdout via -o - or specify output file(e.g. helloworld.s) and pipe it to cat. Anyway, it's completely your choice.
Now take a close look at the generated assembly codes. Concentrate on the highlighted lines 30-31. It's a typical usage of ADRL which assembles to two instructions, an ADRP followed by ADD.
Their co-occurrence is for calculating the address of label .LC0, which resides in the .rodata section. It comes from the first parameter of printf and refers to a literal string of format-specifier.
Well, that's enough. Eating too much at once can lead to indigestion. Let's not get into it, just get acquainted at first time. A resuscitation, two back to familiar, three back when the teacher.
C runtime data#
Programming with 64-Bit ARM Assembly Language | Chapter 15: Reading and Understanding Code - Code Created by GCC
Listing 15-3. Assembly code generated by the C compiler for our upper-case function
The compiler uses the ADRP instruction to load the values of pointers. We covered ADR in Chapter 5, “Thanks for the Memories”; ADRP works like ADR, except that it loads to a 4K page boundary. This means that it has a greater range than ADR, but for humans it's harder to use. The compiler must set it to a page boundary, which in this case points to C runtime data and then uses cumbersome offsets to get to the correct data. This is good for compilers, not so good for humans to code.
PLT stub#
gcc helloworld.c will generate a.out. It's kind of statically linked DYN PIE ELF, see GCC Compilation Quick Tour - dynamic, DYN ELF Walkthrough and puts@plt - static analysis.
The following is the disassembly of the PLT stub puts@plt for dynamic-linking and lazy-loading symbol libc/puts.
# objdump -j .plt -d a.out
$ objdump --disassemble=puts@plt a.out
a.out: file format elf64-littleaarch64
Disassembly of section .init:
Disassembly of section .plt:
0000000000000630 <puts@plt>:
630: 90000090 adrp x16, 10000 <__FRAME_END__+0xf770>
634: f947e611 ldr x17, [x16, #4040]
638: 913f2210 add x16, x16, #0xfc8
63c: d61f0220 br x17
640: Address 0x0000000000000640 is out of bounds.
Disassembly of section .text:
Disassembly of section .fini:
In r2, use pxb to hexdump 4 instructions in bytes/bits form after dcu rsym.puts.
# pf4d / pfedddd
[0xaaaadfbc0630]> pxW $l*4
0xaaaadfbc0630 0x90000090
0xaaaadfbc0634 0xf947e611
0xaaaadfbc0638 0x913f2210
0xaaaadfbc063c 0xd61f0220
[0xaaaadfbc0630]> pxb $l*4
0xaaaadfbc0630 1001_0000 0000_0000 0000_0000 1001_0000 0x90000090 ....
0xaaaadfbc0634 0001_0001 1110_0110 0100_0111 1111_1001 0x11e647f9 ..G.
0xaaaadfbc0638 0001_0000 0010_0010 0011_1111 1001_0001 0x10223f91 ."?.
0xaaaadfbc063c 0010_0000 0000_0010 0001_1111 1101_0110 0x20021fd6 ...
# bitstream of 32 bits
[0xaaaadfbc0630]> pb $l*8
10010000000000000000000010010000
# bitstream of 4 bytes for next inst
[0xaaaadfbc0630]> pB $l @ pc+4
00010001111001100100011111111001
We can analyse the instructions using capstone-tool.
# opcode fetched as LE, happens to be palindromic bytes
$ rax2 Bx90000090
10010000000000000000000010010000b
$ rasm2 -de -a arm 0x90000090
adrp x16, 0x10000
$ cstool arm64be 0x90000090
0 90 00 00 90 adrp x16, #0x10000
$ cstool -d arm64be 0x90000090
0 90 00 00 90 adrp x16, #0x10000
ID: 20 (adrp)
op_count: 2
operands[0].type: REG = x16
operands[0].access: WRITE
operands[1].type: IMM = 0x10000
operands[1].access: READ
Registers modified: x16
In the AArch64 execution state, data accesses can be LE or BE, while instruction fetches are always LE.
# opcode fetched as LE, endianness swapped
# Rn=0b100000=16; Rt=0b10001=17
$ rax2 Bxf947e611
11111001010001111110011000010001b
# memory storage perspective:
# $ cstool arm64 $(rax2 -ke 0xf947e611)
# 0 11 e6 47 f9 ldr x17, [x16, #0xfc8]
# endianness already swapped, just decode it as BE.
$ rasm2 -de -a arm 0xf947e611
ldr x17, [x16, 0xfc8]
$ cstool arm64be 0xf947e611
0 f9 47 e6 11 ldr x17, [x16, #0xfc8]
# memory storage perspective:
# cstool -d arm64 $(rax2 -ke 0xf947e611)
# opcode decode/bitset perspective:
$ cstool -d arm64be 0xf947e611
0 f9 47 e6 11 ldr x17, [x16, #0xfc8]
ID: 162 (ldr)
op_count: 2
operands[0].type: REG = x17
operands[0].access: WRITE
operands[1].type: MEM
operands[1].mem.base: REG = x16
operands[1].mem.disp: 0xfc8
operands[1].access: READ
Registers read: x16
Registers modified: x17
Or write a short Python snippet to make analysing intuitive.
opcode=0x90000090
#format(opcode, '032b')
#f'{opcode=:#032b}'
immlo_mask=(1<<30)|(1<<29)
# f'{immlo_mask=:032b}'
immhi_mask=(2**24-1)&(~(2**5-1))
# f'{immhi_mask=:032b}'
immlo=((opcode&immlo_mask)<<1)>>30
# f'immlo: {immlo=:02b}'
immhi=(opcode&immhi_mask)>>5
# f'immhi: {immhi=:019b}'
imm=(immhi<<2|immlo)<<12
f'{imm=:#8x}'
imm= 0x10000 is the PC-relative literal that encoded in the ADRP instruction.
For practical run-time debugging status, see reloc puts@plt via GOT - pwndbg or reloc puts@plt via GOT - r2 debug.
