Register file of ARM64

The ISA is a contract between the hardware and the software. It defines the set of instructions and the set of registers that the hardware must support.

The most important components of the CPU are the registers, where data is stored, and the arithmetic and logic unit (ALU), where arithmetic and logical operations are performed on the data.

Arm® processors provide general-purpose and special-purpose registers. Some additional registers are available in privileged execution modes.

Registers which can be used freely are referred to as volatile, and registers which must be preserved or restored before returning are referred to as non-volatile.

isa guide - Registers in AArch64

Learn the architecture - A64 Instruction Set Architecture Guide

• 6.Registers in AArch64 - general-purpose registers
• 7.Registers in AArch64 - other registers
• 8.Registers in AArch64 - system registers

general-purpose registers

Most A64 instructions operate on registers. The architecture provides 31 general purpose registers. Each register can be used as a 64-bit X register (X0..X30), or as a 32-bit W register (W0..W30). These are two separate ways of looking at the same register. For example, this register diagram shows that W0 is the bottom 32 bits of X0, and W1 is the bottom 32 bits of X1:

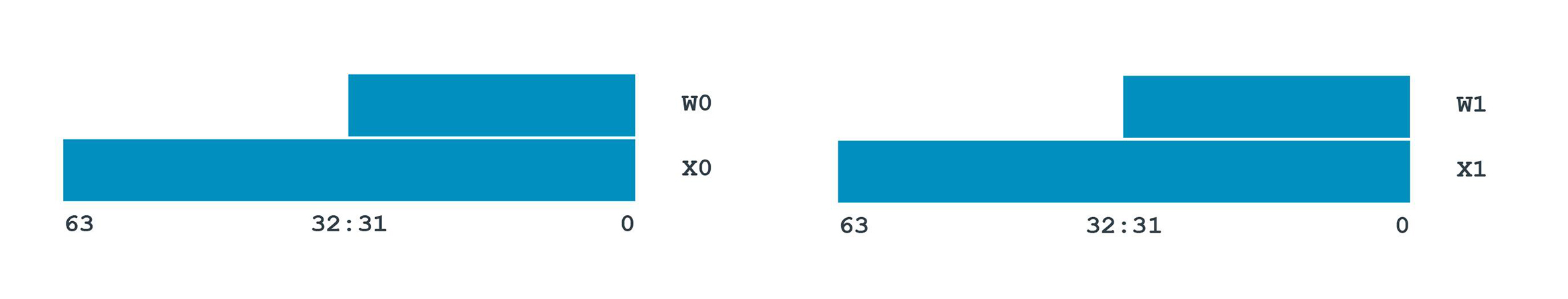

Figure 6-1 Register diagram

For data processing instructions, the choice of X or W determines the size of the operation. Using X registers will result in 64-bit calculations, and using W registers will result in 32-bit calculations. This example performs a 32-bit integer addition:

ADD W0, W1, W2

This example performs a 64-bit integer addition:

ADD X0, X1, X2

When a W register is written, as seen in the example above, the top 32 bits of the 64-bit register are zeroed.

There is a separate set of 32 registers used for floating point and vector operations. These registers are 128-bit, but like the general-purpose registers, can be accessed in several ways. Bx is 8 bits, Hx is 16 bits and so on to Qx which is 128 bits.

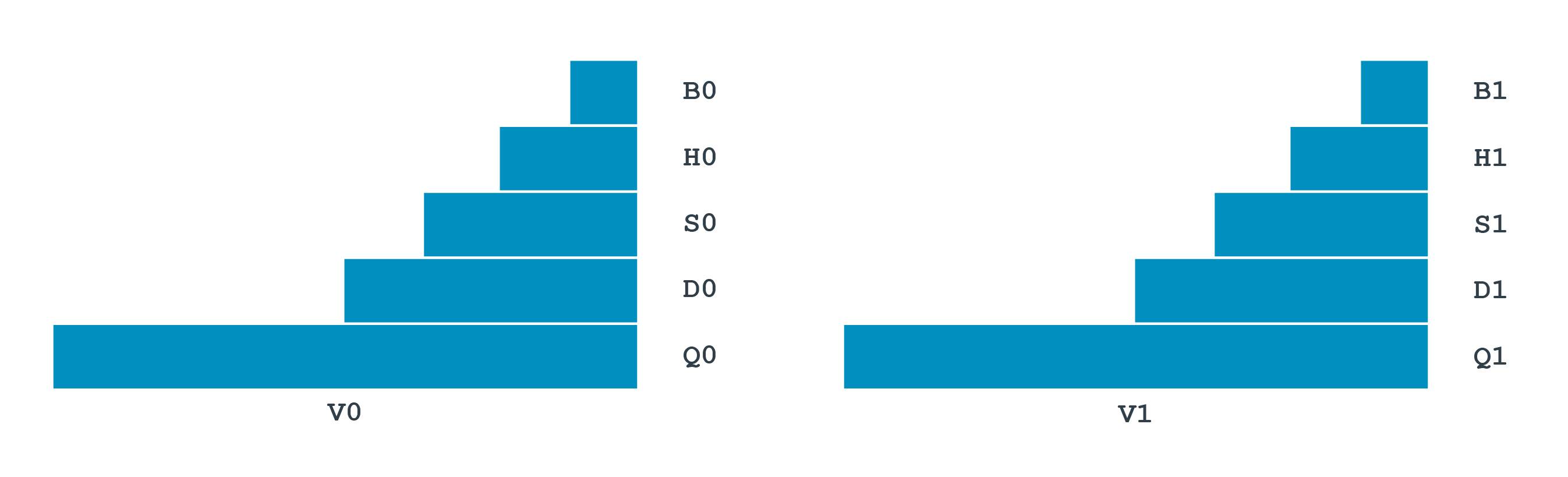

Figure 6-2 Register diagram

other registers

Here are some other registers in the A64 that you should know about:

• The zero registers, XZR and WZR, always read as 0 and ignore writes.

• You can use the stack pointer (SP) as the base address for loads and stores. You can also use the stack pointer with a limited set of data-processing instructions, but it is not a regular general purpose register. Armv8-A has multiple stack pointers, and each one is associated with a specific Exception level. When SP is used in an instruction, it means the current stack pointer. The guide to the exception model explains how the stack pointer is selected.

• X30 is used as the Link Register and can be referred to as LR. Separate registers, ELR_ELx, are used for returning from exceptions. This is discussed in more detail in the guide to the exception model.

• The Program Counter (PC) is not a general-purpose register in A64, and it cannot be used with data processing instructions. The PC can be read using:

ADR Xd, .

The ADR instruction returns the address of a label, calculated based on the current location. Dot (.) means ‘here’, so the shown instruction is returning the address of itself. This is equivalent to reading the PC. Some branch instructions, and some load/store operations, implicitly use the value of the PC.

PC/SP distinction between A32 & A64

In the A32 and T32 instruction sets, the PC and SP are general purpose registers. This is not the case in A64 instruction set.

Programmer's Guide - ARMv8 Registers

ARM Cortex-A Series Programmer's Guide for ARMv8-A | 4: ARMv8 Registers

The AArch64 execution state provides 31 × 64-bit general-purpose registers accessible at all times and in all Exception levels.

Each register is 64 bits wide and they are generally referred to as registers X0-X30.

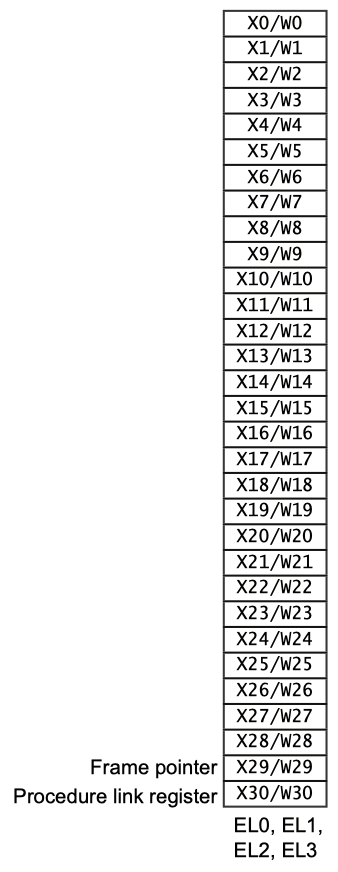

Figure 4.1. AArch64 general-purpose registers

Each AArch64 64-bit general-purpose register (X0-X30) also has a 32-bit (W0-W30) form.

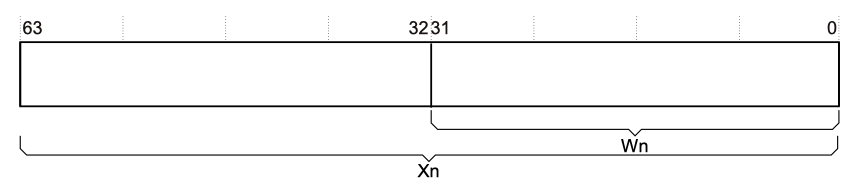

Figure 4.2. 64-bit register with W and X access

The 32-bit W register forms the lower half of the corresponding 64-bit X register. That is, W0 maps onto the lower word of X0, and W1 maps onto the lower word of X1.

Suppose X0=0xDEADBEEFFACEFEED, W0=0xFACEFEED in LE(Litte-Endian).

Reads from W registers disregard the higher 32 bits of the corresponding X register and leave them unchanged. Writes to W registers set the higher 32 bits of the X register to zero. That is, writing 0xFFFFFFFF into W0 sets X0 to 0x00000000FFFFFFFF.

AArch64 special registers

In addition to the 31 core registers, there are also several special registers.

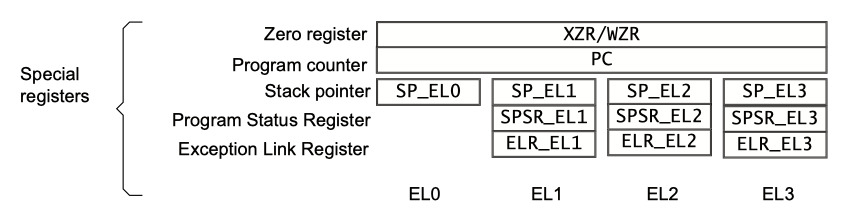

Figure 4.3. AArch64 special registers

X31? ZR or SP?

There is no register called X31 or W31. Many instructions are encoded such that the number 31 represents the zero register, ZR (WZR/XZR). There is also a restricted group of instructions where one or more of the arguments are encoded such that number 31 represents the Stack Pointer (SP).

When accessing the zero register, all writes are ignored and all reads return 0. Note that the 64-bit form of the SP register does not use an X prefix.

Table 4.1. Special registers in AArch64

Name	Size	Description
WZR	32 bits	Zero register
XZR	64 bits	Zero register
WSP	32 bits	Current stack pointer
SP	64 bits	Current stack pointer
PC	64 bits	Program counter

armasm guide - Registers in AArch64 state

Arm Compiler armasm User Guide

5. Overview of AArch64 state

• 5.1 Registers in AArch64 state
• 5.3 Link registers
• 5.4 Stack Pointer register

7. Writing A32/T32 Assembly Language

• 7.3 Register usage in subroutine calls

Arm® processors provide general-purpose and special-purpose registers. Some additional registers are available in privileged execution modes.

In AArch64 state, the following registers are available:

• Thirty-one 64-bit general-purpose registers X0-X30, the bottom halves of which are accessible as W0-W30.
• Four stack pointer registers SP_EL0, SP_EL1, SP_EL2, SP_EL3.
• Three exception link registers ELR_EL1, ELR_EL2, ELR_EL3.
• Three saved program status registers SPSR_EL1, SPSR_EL2, SPSR_EL3.
• One program counter(PC).

CPSR vs. PSTATE

In AArch64 state, there is no Current Program Status Register (CPSR).
ALU flags stored in PSTATE and needs to be generated by a previous instruction such as a compare (CMP).
The PSTATE register contains bits that indicate the status of the current process, including information about the results of previous operations.

All these registers are 64 bits wide except SPSR_EL1, SPSR_EL2, and SPSR_EL3, which are 32 bits wide.

Most A64 integer instructions can operate on either 32-bit or 64-bit registers. The register width is determined by the register identifier, where W means 32-bit and X means 64-bit. The names Wn and Xn, where n is in the range 0-30, refer to the same register. When you use the 32-bit form of an instruction, the upper 32 bits of the source registers are ignored and the upper 32 bits of the destination register are set to zero.

There is no register named W31 or X31. Depending on the instruction, register 31 is either the stack pointer or the zero register. When used as the stack pointer, you refer to it as SP. When used as the zero register, you refer to it as WZR in a 32-bit context or XZR in a 64-bit context.

ARM Cortex-A Series Programmer's Guide for ARMv8-A | 4: ARMv8 Registers - 4.1 AArch64 special registers

In the ARMv8 architecture, when executing in AArch64, the exception return state is held in the following dedicated registers for each Exception level:

• Exception Link Register (ELR).
• Saved Processor State Register (SPSR).

There is a dedicated SP per Exception level, but it is not used to hold return state.

Table 4.2. Special registers by Exception level

	EL0	EL1	EL2	EL3
Stack Pointer (SP)	SP_EL0	SP_EL1	SP_EL2	SP_EL3
Exception Link Register (ELR)		ELR_EL1	ELR_EL2	ELR_EL3
Saved Process Status Register (SPSR)		SPSR_EL1	SPSR_EL2	SPSR_EL3

ARM 64-Bit Assembly Language

ARM 64-Bit Assembly Language, Larry D Pyeatt & William Ughetta, 2019

User Program Registers

3 Load/store and branch instructions - 3.2 AArch64 user registers:

As shown in Fig. 3.2, the AArch64 ISA provides 31 general-purpose registers, which are called X0 through X30. These registers can each store 64 bits of data. To use all 64 bits, they are referred to as x0 through x30 (capitalization is optional). To use only the lower (least significant) 32 bits, they are referred to as w0-w30. Since each register has a 64-bit name and a 32-bit name, we use R0 through R30 to specify a register without specifying the number of bits. For example, when we refer to R12, we are really referring to either x12 or w12.

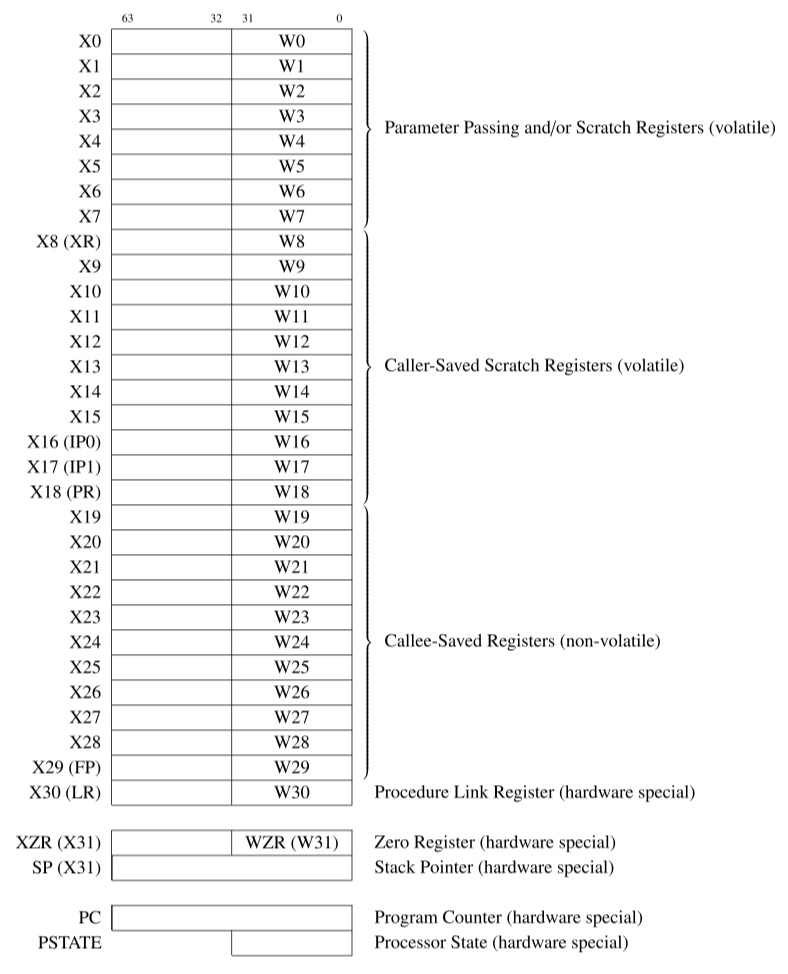

Figure 3.2: AArch64 general purpose registers and special registers

5 Structured programming - 5.4 Subroutines - 5.4.4 Passing parameters:

These programming conventions are simply a set of rules for how registers should be used. In AArch64 assembly, all of the registers have alternate names that can be used to help remember the rules for using them. Fig. 5.1 shows an expanded view of the AArch64 registers, including their alternate names and conventional use.

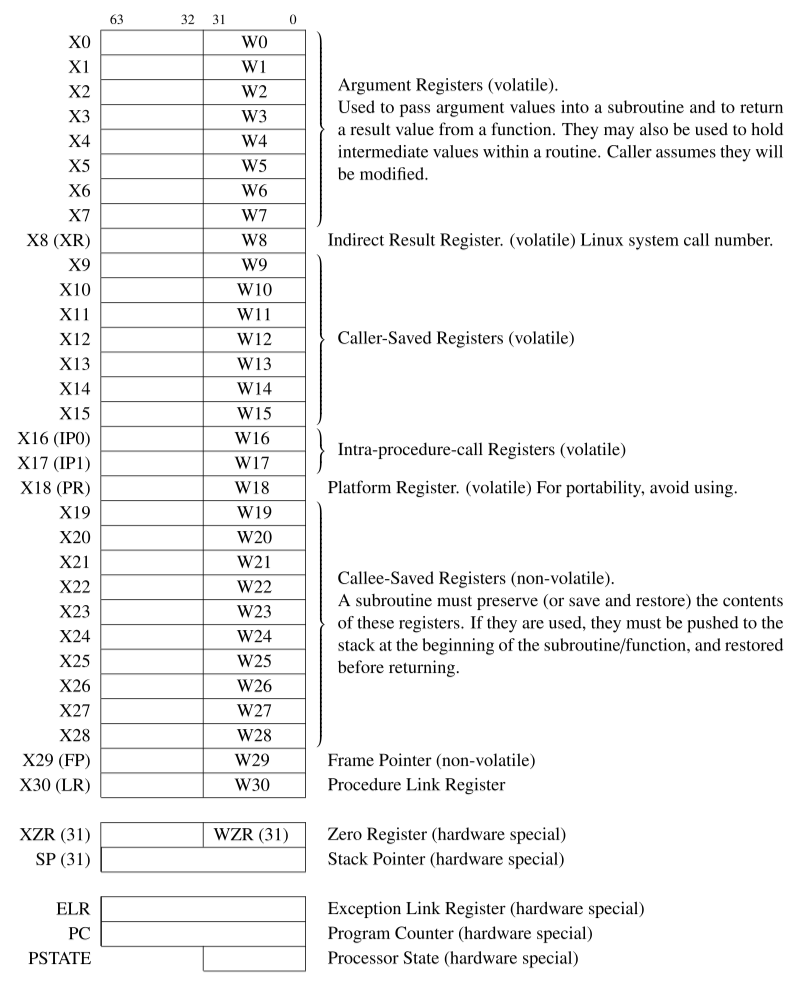

Figure 5.1: AArch64 User Program Registers

volatile vs. non-volatile

The argument registers, x0-x7, are considered to be volatile, because their contents can change whenever a subroutine is called. If the contents are needed after the subroutine call, then they must be saved either to a non-volatile register or to the stack before the subroutine is called.

Registers x8-x17 are used for holding local variables in a subroutine. These registers are also considered to be volatile. Some of these registers are used for special purposes by the operating system and/or compiler. From the perspective of the programmer who is writing a user-level program, the special purposes are not important.

Registers x19-x28 can also be used for holding local variables. However, before using them, the subroutine must save their contents (usually on the stack) and their contents must be restored before the subroutine exits. These registers are considered non-volatile because their contents will not be changed by a subroutine call. More precisely, the subroutine may use them, but it will restore their contents before it returns.

DESCRIPTION	REGISTERS (A32/T32)	REGISTERS (A64)
Volatile integer registers	r0-r3, IP	x0-x17
Nonvolatile integer registers	r4-r8, r10, FP, SP, LR	x19-×30
Platform-specific	r9	x18

volatile vs. non-volatile in a nutshell

Registers which can be used freely are referred to as volatile, and registers which must be preserved or restored before returning are referred to as non-volatile.

• registers x0-x18 are volatile,
• registers x19-x29 are non-volatile (they can be used, but their contents must be restored to their original value before the function returns),
• register x30 can be used by the function, but its contents must be saved so that they can be loaded into the program counter, which will cause the function to return to its caller.

armasm dedicated pointers

In fact, in AArch64 assembly, there are four special registers PC, LR(X30), SP(X31?) and FP(X29) featured as Pointer or Linker.

PC(Program Counter)

In AArch64 state, the Program Counter (PC) contains the address of the currently executing instruction and acts as a cursor/indicator. It is incremented by the size of the instruction executed, which is always four bytes. See ARM Program Counter for details related to the instruction pipeline.

The program counter

ARM 64-Bit Assembly Language | 3 Load/store and branch instructions - 3.2 AArch64 user registers

The program counter, pc, always contains the address of the next instruction that will be executed. The processor increments this register by four, automatically, after each instruction is fetched from memory. By moving an address into this register, the programmer can cause the processor to fetch the next instruction from the new address. This gives the programmer the ability to jump to any address and begin executing code there.

LR(Link Register)

In AArch64 state, the Link Register (LR) stores the return address when a subroutine call is made. It can also be used as a general-purpose register if the return address is stored on the stack. The LR maps to register X30.

The procedure link register

ARM 64-Bit Assembly Language | 3 Load/store and branch instructions - 3.2 AArch64 user registers

The procedure link register, x30, is used to hold the return address for subroutines. Certain instructions cause the program counter to be copied to the link register, then the program counter is loaded with a new address. The link register could theoretically be used as a scratch register, but its contents are modified by hardware when a subroutine is called, in order to save the correct return address. Using x30 as a general-purpose register is dangerous and is strongly discouraged.

SP(Stack Pointer)

The current stack extent, stored in the special-purpose register SP. You can use the stack pointer (SP) as the base address for loads and stores. The SP moves from the base to the limit as the stack grows, and from the limit to the base as the stack shrinks.

The stack pointer

ARM 64-Bit Assembly Language | 3 Load/store and branch instructions - 3.2 AArch64 user registers

The stack pointer, sp, is used to hold the address where the stack ends. This is commonly referred to as the top of the stack, although on most systems the stack grows downwards and the stack pointer really refers to the lowest address in the stack. The address where the stack ends may change when registers are pushed onto the stack, or when temporary local variables (automatic variables) are allocated or deleted.

FP(Frame Pointer)

Conforming code shall construct a linked list of stack-frames. Each frame shall link to the frame of its caller by means of a frame record of two 64-bit values on the stack (independent of the data model). The frame record for the innermost frame (belonging to the most recent routine invocation) shall be pointed to by the frame pointer register (FP, X29 in AArch64). The lowest addressed double-word shall point to the previous frame record and the highest(next to FP?) addressed double-word shall contain the value passed in LR(X30 in AArch64) on entry to the current function.

The frame pointer

ARM 64-Bit Assembly Language | 3 Load/store and branch instructions - 3.2 AArch64 user registers

The frame pointer, x29, is used by high-level language compilers to track the current stack frame. This register can be helpful when the program is running under a debugger, and can sometimes help the compiler to generate more efficient code for returning from a subroutine. The GNU C compiler can be instructed to use x29 as a general-purpose register by using the -fomit-frame-pointer command line option. The use of x29 as the frame pointer is a programming convention. Some instructions (e.g. branches) implicitly modify the program counter, the link register, and even the stack pointer, so they are considered to be hardware special registers. As far as the hardware is concerned, the frame pointer is exactly the same as the other general-purpose registers, but AArch64 programmers use it for the frame pointer because of the ABI.
