C++ Data Types

Every name and every expression has a type that determines the operations that may be performed on it.

Types built out of the built-in types using C++'s abstraction mechanisms are called user-defined types. They are referred to as structures, classes and enumerations.

C++ Type

C++ language Basic Concepts - Type

Objects, references, functions including function template specializations, and expressions have a property called type, which both restricts the operations that are permitted for those entities and provides semantic meaning to the otherwise generic sequences of bits.

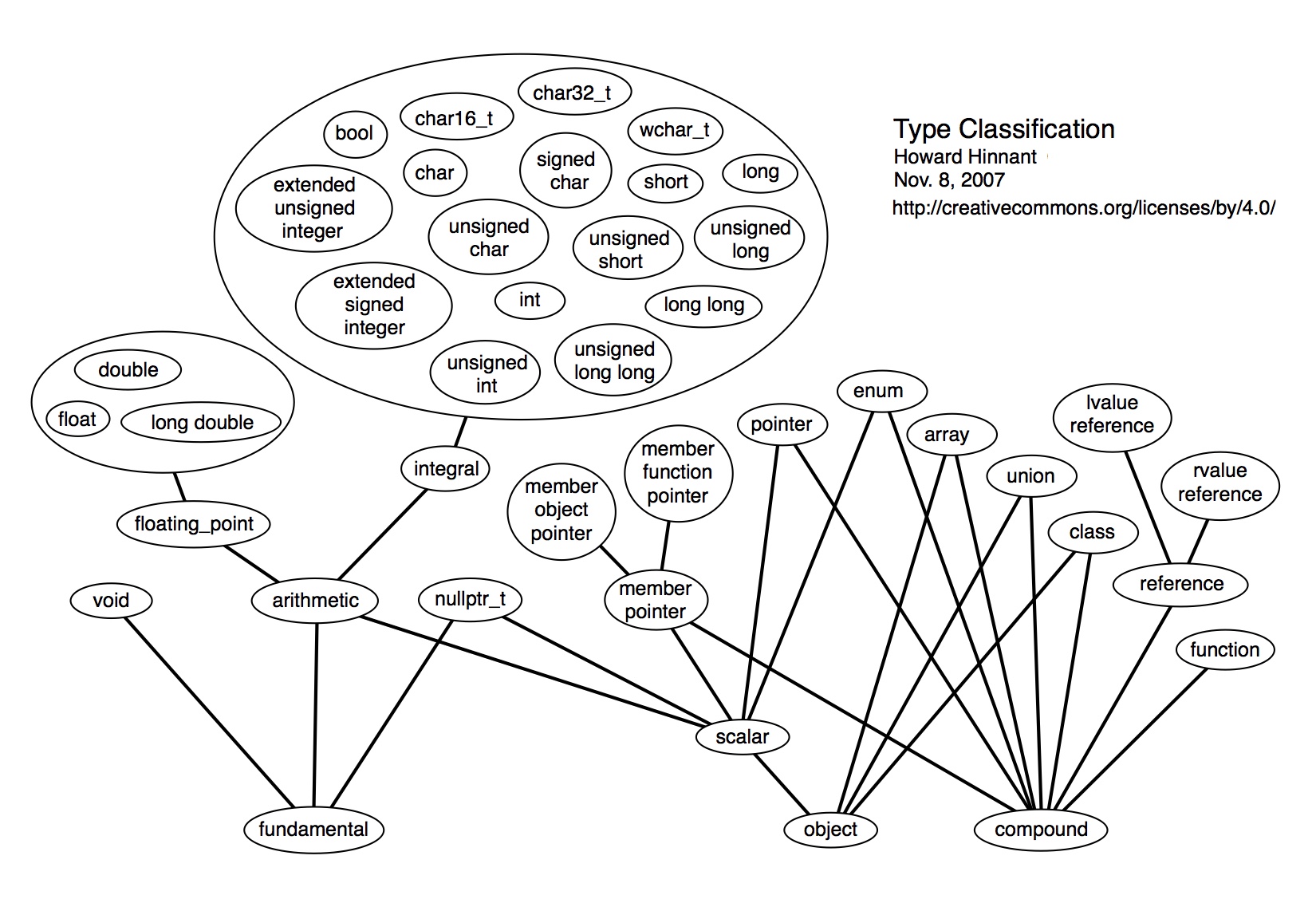

• Type classification
• Program-defined type
• Type naming
• Elaborated type specifier
• Static type
• Dynamic type
• Incomplete type

There are fundamental types and compound types.

• Fundamental types are the arithmetic types, void, and std::nullptr_t.
• Compound types are arrays, functions, pointers, references, classes, unions, enumerations, and pointers to non-static members.

C++ language Basic Concepts - Fundamental types

• Void type
• std::nullptr_t (since C++11)
• Data models
• Integral types
• Floating-point types
• Range of values

C++ Utilities library - Type support (basic types, RTTI)

• Additional basic types and macros
• Fixed width integer types (since C++11)
• Fixed width floating-point types (since C++23)
• Numeric limits
• Runtime type identification

Numerics library

• Mathematical functions and types
• Numeric algorithms
• Miscellanous

C++98 : Variables. Data Types.
C++ Language: Variables and types

Integral types

Modifies the basic integer type. Can be mixed in any order. Only one of each group can be present in type name.

Signedness:

• signed — target type will have signed representation (this is the default if omitted)
• unsigned — target type will have unsigned representation

Size:

• short — target type will be optimized for space and will have width of at least 16 bits.
• long — target type will have width of at least 32 bits.
• long long — target type will have width of at least 64 bits. (since C++11)

Modifiers Order Indiference

as with all type specifiers, any order is permitted: unsigned long long int and long int unsigned long name the same type.

Properties:

The following table summarizes all available standard integer types and their properties in various common data models:

Type straits and Constraints

Type traits and metaprogramming library

Type traits define compile-time template-based interfaces to query the properties of types.

<type_traits>: This header defines a series of classes to obtain type information on compile-time.

• Helper classes: Standard classes to assist in creating compile-time constants.
• Type traits: Classes to obtain characteristics of types in the form of compile-time constant values.
• Type transformations: Classes to obtain new types by applying specific transformations to existing types.

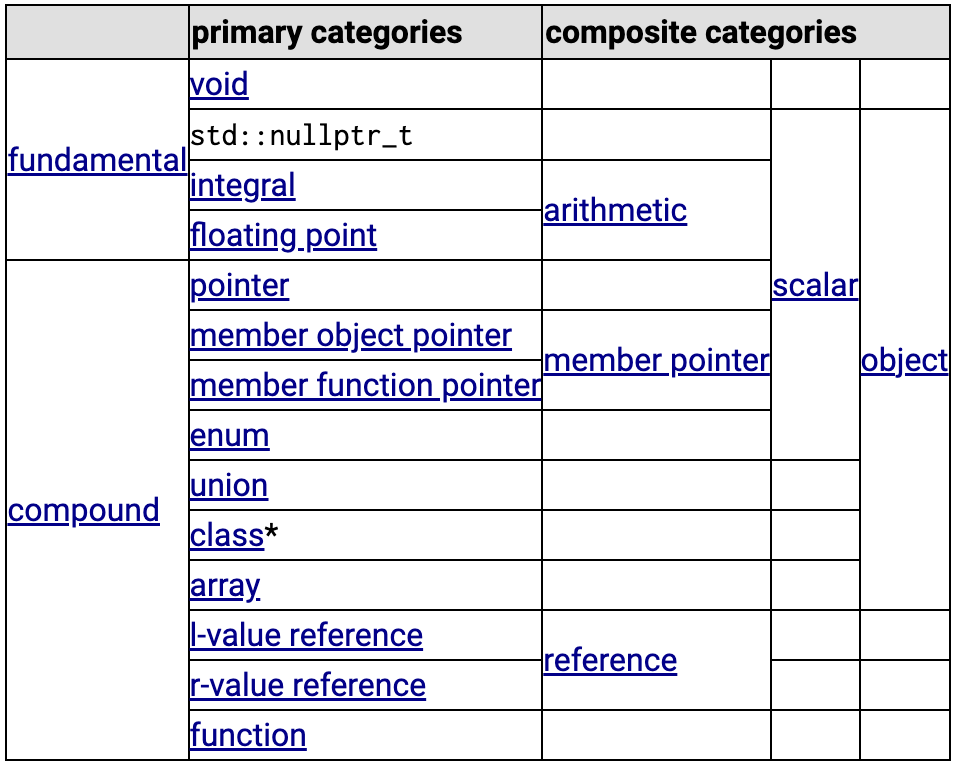

A basic trait for types is the categories in which they can be classified. This is a chart on how these categories overlap:

• * = excluding unions

Constraints and concepts & Concepts library (since C++20)

Class templates, function templates, and non-template functions (typically members of class templates) might be associated with a constraint, which specifies the requirements on template arguments, which can be used to select the most appropriate function overloads and template specializations.

Named sets of such requirements are called concepts. Each concept is a predicate, evaluated at compile time, and becomes a part of the interface of a template where it is used as a constraint.

Compiler Conformances

GCC libstdc++ Types

MSDN - C++ Type System

The following illustration shows the relative sizes of the built-in types in the Microsoft C++ implementation:

MSVC built-in type sizes

MSDN - Built-in types (C++)

• Void type
• std::nullptr_t
• Boolean type
• Character types
• Floating-point types
• Integer types
• Sizes of built-in types

LLVM Features: The type system consists of basic types such as integer or floating-point numbers and five derived types: pointers, arrays, vectors, structures, and functions. A type construct in a concrete language can be represented by combining these basic types in LLVM. For example, a class in C++ can be represented by a mix of structures, functions and arrays of function pointers.

TC++PL4

A Tour of C++(3e)-2022
The_C++_Programming_Language(4e)-2013

• 2.2 The Basics | 2.2.2 Types, Variables, and Arithmetic
• 2.3 User-Defined Types : Structures; Classes; Enumerations

C++ Data Types:

TypeHiearchy.pdf:

2.2 The Basics

Every name and every expression has a type that determines the operations that may be performed on it. For example, the declaration

int inch;

specifies that inch is of type int; that is, inch is an integer variable.

A declaration is a statement that introduces a name into the program. It specifies a type for the named entity:

• A type defines a set of possible values and a set of operations (for an object).
• An object is some memory that holds a value of some type.
• A value is a set of bits interpreted according to a type.
• A variable is a named object.

Each fundamental type corresponds directly to hardware facilities and has a fixed size that determines the range of values that can be stored in it.

• bool: 1
• char: 1
• int: 4
• double: 8

A char variable is of the natural size to hold a character on a given machine (typically an 8-bit byte), and the sizes of other types are quoted in multiples of the size of a char. The size of a type is implementation-defined (i.e., it can vary among different machines) and can be obtained by the sizeof operator; for example, sizeof(char) equals 1 and sizeof(int) is often 4.

2.3 User-Defined Types

We call the types that can be built from the fundamental types, the const modifier, and the declarator operators built-in types. C++'s set of built-in types and operations is rich, but deliberately low-level. They directly and efficiently reflect the capabilities of conventional computer hardware. However, they don't provide the programmer with high-level facilities to conveniently write advanced applications. Instead, C++ augments the built-in types and operations with a sophisticated set of abstraction mechanisms out of which programmers can build such high-level facilities.

The C++ abstraction mechanisms are primarily designed to let programmers design and implement their own types, with suitable representations and operations, and for programmers to simply and elegantly use such types. Types built out of the built-in types using C++'s abstraction mechanisms are called user-defined types. They are referred to as structures, classes and enumerations.

User-defined types can be built out of both built-in types and other user-defined types. User-defined types are often preferred over built-in types because they are easier to use, less error-prone, and typically as efficient for what they do as direct use of built-in types, or even more efficient.
